Windows Server 2016 and Windows 10 Gold Images creation fail with VERDE RPM.

Windows Server 2016 and Windows 10 Gold Images creation fail with VERDE RPM.

Product Line:  VERDE

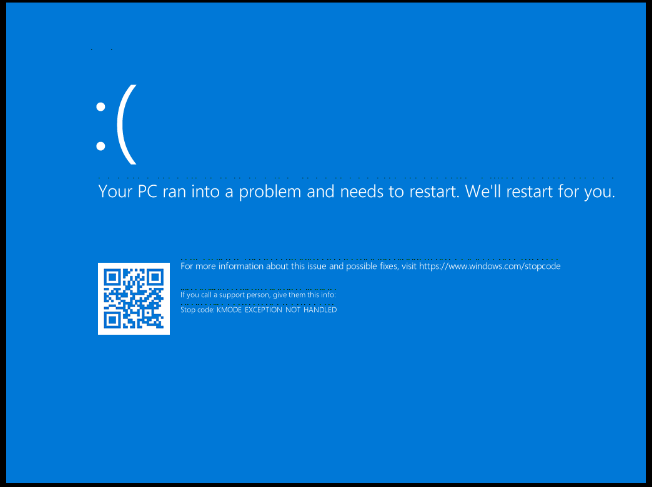

There's a known issue specific to VERDE (rpm) 8.2.3 and Skylake and some Xeon  server processors when creating Windows 10 or Windows 2016 server gold images.   The following error may pop up:

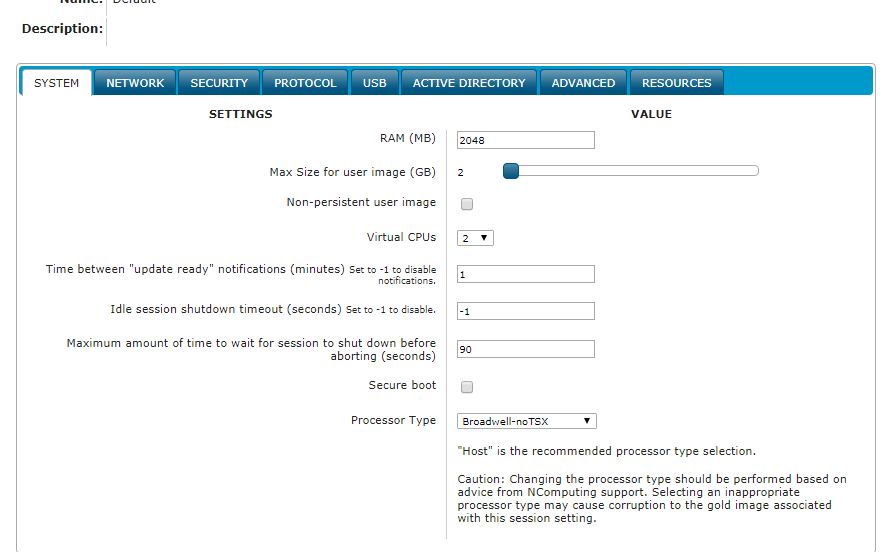

The work around is to modify the SessionSetting/System  Processor Type to "Broadwell-noTSX" as in the following screen shot:

‚Äč
