Product Line:  VERDE

Introduction: The information contained within this Knowledge Base Article refers to the networking aspects of the Verde VDI User application being installed via a set of RPMs (program modules) on top of CentOS7. The following networking information is made up of basic CentOS7 (Linux networking) and additions/extensions added from the Verde VDI User app installation.

[ Basic Networking ] With the installation of CentOS7 as a prerequisite to installing Verde VDI, a base layer for general networking is included that provides basic network functions like: Network interface definitions (via configuration files), default naming for the LAN interfaces, enabling all available LAN interfaces (still need to be configured) and basic Routing.

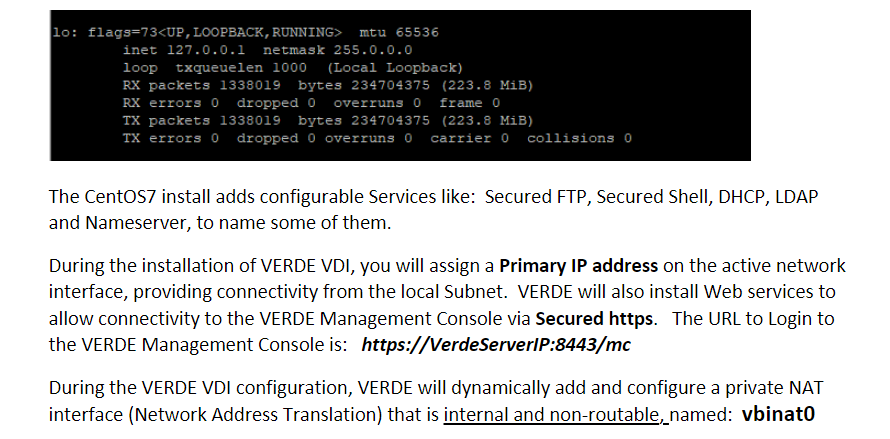

Excerpt from: ifconfig command



[ Continued ]

A Loopback interface is created and named: lo


























 ‚Äč
