Using VNC with RX-300 and RX-RDP
Product Line: VERDE
There is a known limitation with VNC:
The ‘/novcast’ custom parameter for the RDP
connection allows the customer to VNC-shadow the RDP session, but it disables the vCAST technology, which is the main feature of the SuperRDP
software. As stated in the RX-RDP User Guide, the RDP client in most
scenarios is using a hardware-accelerated (Dispmanx) drawing method. vCAST
needs it. The drawing results in such case are invisible
for VNC server and that’s why the black screen is
observed in VNC viewer.
If you want to shadow the VERDE session, you need to disable vCAST by following the below procedures:
To
view session running on RX300 or RX-RDP Devices, use /novcast parameter
in RDP, VERDE RDP settings. See below screenshot:

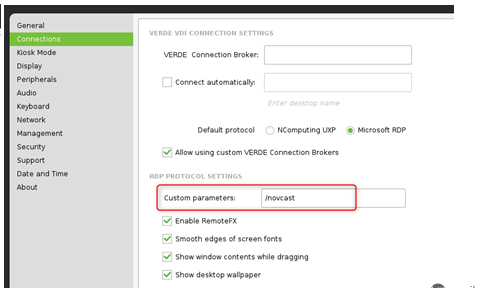

VERDE RDP Settings:

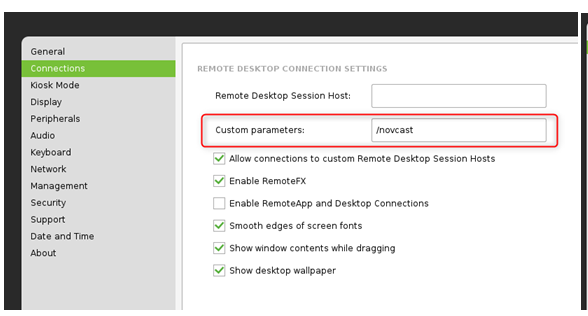

RDP Settings:
