Implementing BRIDGE on VERDE (RPM) - Non-BareMetal

Implementing BRIDGE on VERDE (RPM) - Non-BareMetal

Product Line:  VERDE

Enabling BRIDGE in VERDE (RPM) is profoundly different from VERDEOS.  Perform the following:

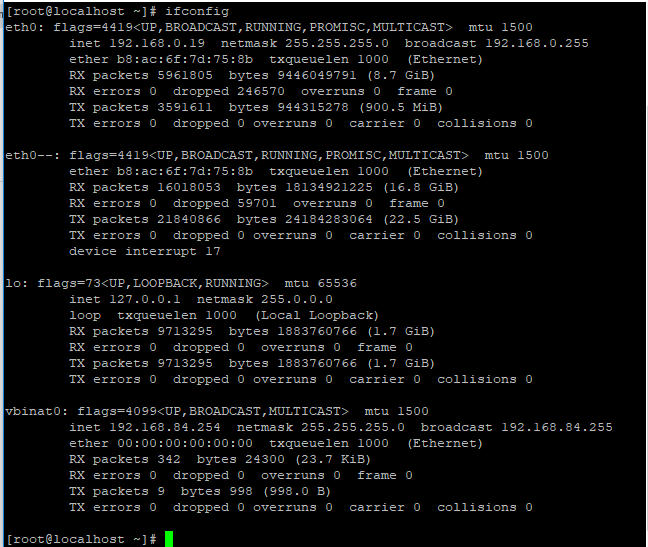

Your network environment must have a dhcp server.  Determine the name of your NIC VERDE is running on?  As you can see in the screen shot, mine is eth0.

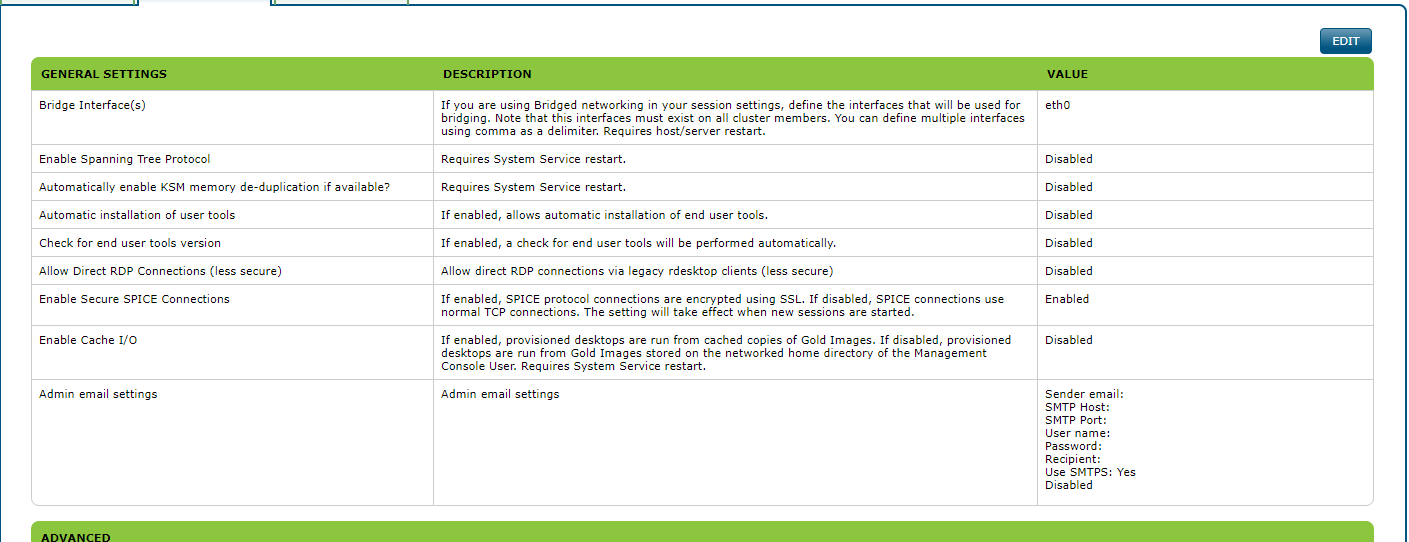

I put that information “eth0” into the MC/Configuration/General Settings/General Settings/Bridge Interface(s) field as follows:





Once you save this, ensure all the sessions are shutdown and do a verde services restart:  service VERDE restart

 Once VERDE comes back up, you’ll see a change in your ifconfig.  You’ll see  eth0  as well as eth0-- .  This is the BRDIGE NIC.


In the Sessions Settings, on the NETWORK tab, select BRIDGE
