How is mass storage devices supported in RX300 and LEAF OS devices?
Generic USB redirection of mass storage devices
Generic USB redirection can be used to redirect Mass storage devices into UXP sessions only. This applies to vSpace Client mode on RX300 or LEAF OS, and to VERDE VDI Client mode with UXP protocol on RX300, RX-RDP or RX420(RDP).
All file system types supported by Windows OS should be supported with Generic USB redirection of mass storage devices. The redirected USB mass storage devices appear in UXP session as ordinary disk drives with a drive letter assigned:
Native redirection of mass storage devices

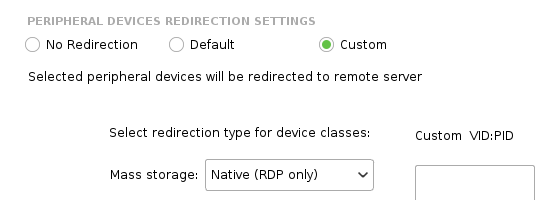

Native redirection can be used to redirect Mass storage devices into RDP (RDP Client mode and VERDE VDI Client mode with RDP protocol) sessions only.

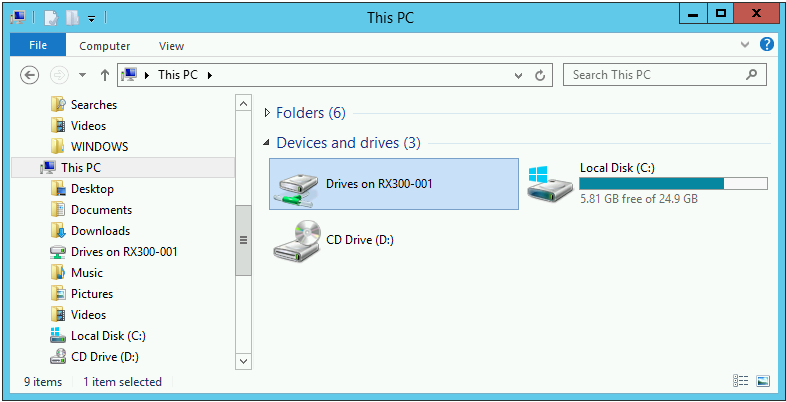

The FAT32 and NTFS file systems are supported on the USB mass storage devices. The RX-series or LEAF OS device mounts the USB mass storage device locally prior to redirection. What actually gets redirected is the local folder where the USB mass storage device was mounted. The redirected mass storage devices appear in RDP sessions as folders in the ‘Drives’ share of the thin client device:
